- Sale Price: $14,998
- MSRP: $24,172
- Save: $9,174
-
Sleeps 9
-
1 Slides
-
BunkhouseU Shaped Dinette
-
32ft Long
-
6,169 lbs
-
Mocha, Peppercorn, Truffle

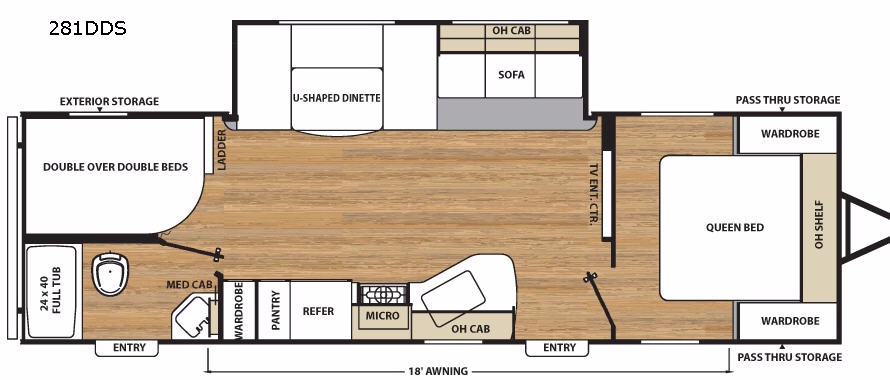

281DDS Floorplan
Specifications
Sleeps | 9 | Slides | 1 |
Length | 31 ft 7 in | Ext Width | 8 ft |
Ext Height | 11 ft 1 in | Int Height | 7 ft |
Interior Color | Mocha, Peppercorn, Truffle | Exterior Color | GRAT |
Hitch Weight | 688 lbs | GVWR | 7600 lbs |
Dry Weight | 6169 lbs | Cargo Capacity | 1431 lbs |
Fresh Water Capacity | 46 gals | Grey Water Capacity | 40 gals |
Black Water Capacity | 30 gals | Tire Size | 225/75R15D |
Furnace BTU | 35000 btu | Number Of Bunks | 2 |
Available Beds | Queen | Refrigerator Type | GAS/ELECTRIC |
Refrigerator Size | 8 cu ft | Cooktop Burners | 3 |
Shower Size | 34X34 | Number of Awnings | 1 |
LP Tank Capacity | 40 | Water Heater Capacity | 6 gal |
Water Heater Type | GAS/ELECTRIC DSI | AC BTU | 15000 btu |
TV Info | LR 40” SMART TV | Awning Info | POWER AWNING |
Axle Count | 2 | Number of LP Tanks | 2 |
Shower Type | Walk-In Shower | Electrical Service | 30 amp |
VIN | 5ZT2CATB4HA027063 |
Description
Double bed bunks, double entry doors, and a nice size slide out create a great camping unit for your larger family to enjoy! This Coachmen Catalina SBX model 281DDS is waiting for your very next adventure!
Step inside the entry door furthest to the front. This takes you into the combined kitchen and living area where you will enjoy added floor space thanks to a large slide out u-shaped dinette and sofa along the road side wall. There is storage above the sofa, and a nearby TV entertainment center that can easily be viewed from any seating here.
The kitchen is located to the left of that same front most entry. Here you will find a large sink for food prep and cleaning up, a three burner range with overhead microwave oven, and a refrigerator for your perishable foods. There is a pantry next to the fridge for your dry and canned goods, and overhead cabinets above the sink as well.
In the very front you will find a private bedroom for mom and dad with a queen size bed and two side wardrobes. There is also an overhead shelf for extra bedding or personal belongings. More sleeping can be found in the rear right corner where there are double bed bunks including a ladder for easy access to the top bed.
In the left rear corner you will find a complete bath with its own private entry door. This is the second entrance along this side which makes getting to the bathroom from outside super convenient. Here you will enjoy a 24" x 40" full tub/shower, a toilet, and a corner vanity with sink including a medicine cabinet, plus more!
Features
- Cambered structural steel I-Beam frame (with full width out riggers)
- 3/8" Fully decked walk-on roof
- One-piece seamless roof membrane
- Radius entry steps
- 5/8" Tongue & groove plywood floor decking
- R-7 fiberglass insulation in sidewalls, roof & floor
- G-20 tinted windows
- Rain gutters with extended molded downspouts
- Platinum .024" Aluminum exterior skin with .030 skirt metal
- Painted bumper w/drain hose carrier and end caps
- Radius-cornered fiberglass entrance door
- Roto-cast holding tanks
- Flush mount baggage doors that are lockable and radius cornered
- Polished aluminum fender skirts
- Self-adjusting brakes
- 110V G.F.C.I. protected exterior receptacle
- 30-Amp electrical service w/deluxe 110v 45-Amp power converter
- City water hook-up
- Full size camp kitchen (321BHDSCK)
Interior
- Screwed cabinet construction with pocket bored solid lumber core stiles
- Grace Cherry stained wood cabinets
- Congoleum wood plank linoleum flooring
- 35K BTU auto-ignition furnace with wall thermostat
- 12V demand water pump
- Systems monitor panel
- Radius corner interior walls (where applicable)
- Residential in-floor ducted heat
- 81" living room ceiling height (78" 231RB, 261BH)
- Cable/TV hook-up in front bedroom
- Solid master bedroom doors (optional on 231RB, 261BH)
- Under-bed storage
- 2 shirt closets with mirrors
- Night stands with recepts
- Decorative glass in living room cabinets
- Jack knife convertible sofa with pillows
- Hard valance window treatment
- Drop edge Thermofoil countertop
- Gas/electric double door refer with reversible insert
- Residential high rise faucet
- Easy-view extra large picture window at dinette
- Silverware drawer
- Large dinette tabletop with marine grade pedestal
- Shower curtain with curved shower track
- ABS tub and shower surround
- Radius shower with glass doors (231RB, 251RLS, 261RKS, 281RKS)
- Marine toilet with foot flush
- Full size medicine cabinet with mirror
Additional Options
- Heated and enclosed underbelly (N/A 231RB, 261BH)
- 15K BTU ducted A/C IPO 13.5K BTU A/C
- Bed comforter
- 3 décor options: Mocha, Peppercorn, Truffle
- 50 Amp service with 2nd A/C prep (321BHDSCK only)
- 30 lb. LP bottles with cover
SBX Customer Value Package
- 13,500 BTU ducted A/C
- Power awning with LED light
- 6 gallon gas/electric DSI water heater
- AM/FM radio with CD and DVD player
- Pleated night shades in living room
- LED interior lighting
- Exterior marine grade speakers (2)
- Rear vision camera prep
- Under mount dual deep basin kitchen sink
- Range with oven IPO 3 burner cooktop
- Range hood
- Microwave
- Skylight above tub/shower
- Spare tire and cover
- Stabilizer jacks (4)
- Water heater by-pass winterization kit
- Front diamond plate
- Sport Wheel Package
See us for a complete list of features and available options!
